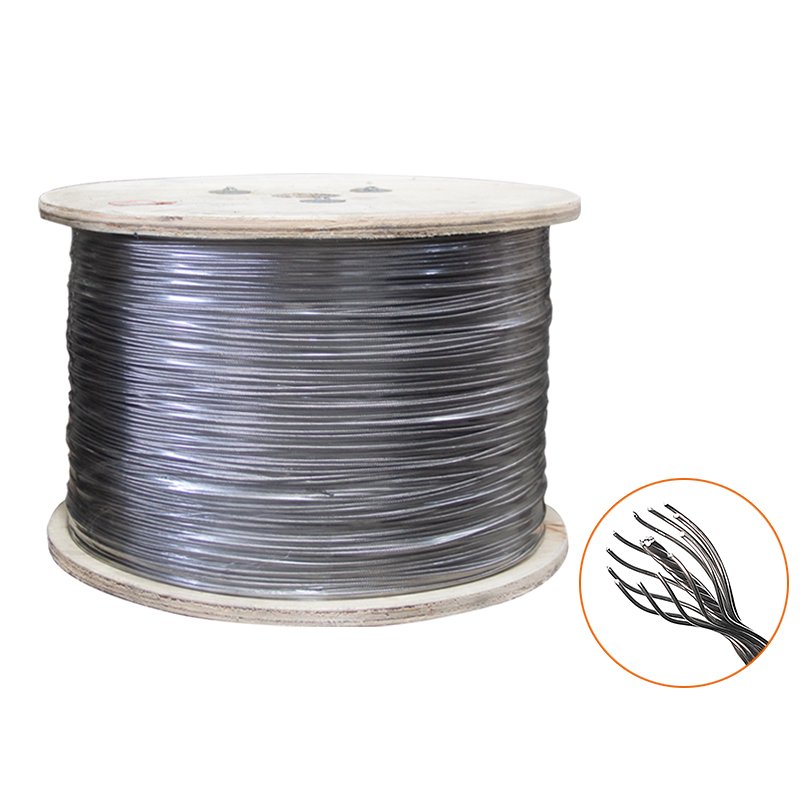

1×19 Stainless Steel Wire Rope Overview
1×19 stainless steel wire rope is a compacted strand construction consisting of nineteen individual wires formed into a single strand. It provides a stable cable profile with relatively low flexibility, making it suitable for applications where dimensional stability, straight-line tension and a clean cable appearance are important.
Compared with 1×7 Stainless Steel Wire Rope, the 1×19 construction uses more individual wires to form the strand. Compared with 7×7 Stainless Steel Wire Rope and 7×19 Stainless Steel Wire Rope, 1×19 remains a relatively rigid construction and is generally selected for applications that do not require frequent bending.
Standard diameters shown for this construction range from 0.40 mm to 12.00 mm, with different reel lengths available according to diameter and order requirements.
1×19 Stainless Steel Wire Rope Technical Parameters
The table below provides reference values for the supplied 1×19 compacted strand construction. Final stainless steel material designation, breaking load, reel length and production specification should be confirmed against the approved order requirements.
| Diameter (mm) | Approx. Weight (kg/100m) | Approx. Meter (m/kg) | Min. Breaking Load (kN) | Package (m/reel) |
|---|---|---|---|---|
| 0.40 | 0.08 | 1250.00 | 0.12 | 5000 |
| 0.50 | 0.13 | 769.23 | 0.15 | 4000 |
| 0.60 | 0.17 | 777.23 | 0.29 | 4000 |
| 0.80 | 0.31 | 322.58 | 0.53 | 4000 |
| 1.00 | 0.49 | 204.08 | 0.82 | 4000 |
| 1.20 | 0.71 | 140.85 | 1.07 | 4000 |
| 1.50 | 1.11 | 90.09 | 1.85 | 3000 |
| 1.80 | 1.60 | 62.50 | 2.67 | 3000 |
| 2.00 | 1.98 | 50.51 | 3.30 | 2000 |
| 2.50 | 3.09 | 32.36 | 5.16 | 1000 |
| 3.00 | 4.45 | 22.47 | 7.43 | 1000 |
| 4.00 | 7.92 | 12.63 | 13.21 | 1000 |
| 5.00 | 12.37 | 8.08 | 21.64 | 1000 |
| 6.00 | 17.82 | 5.61 | 29.72 | 1000 |
| 8.00 | 52.80 | 1.89 | 52.80 | 1000 |
| 10.00 | 82.40 | 1.21 | 82.50 | 1000 |
| 12.00 | 118.70 | 0.84 | 119.00 | 500 |
The above values are reference specifications. Actual weight, minimum breaking load and reel length should be confirmed according to the final material and production requirements.
1×19 Stainless Steel Wire Rope Construction
The 1×19 construction consists of nineteen individual wires arranged in a single strand. A typical cross-section contains one center wire, six wires in the inner layer and twelve wires in the outer layer.
This construction produces a compact and stable cable profile while maintaining lower flexibility than multi-strand constructions such as 7×7 and 7×19.
Because 1×19 is relatively rigid, it is better suited to applications where the cable remains primarily under tension rather than continuously passing over pulleys or undergoing repeated bending.
Key Features
- 1×19 compacted strand construction
- 19-wire single-strand structure
- Diameter range from 0.40 mm to 12.00 mm
- Stable and consistent cable profile
- Relatively low flexibility
- Suitable for straight-line tension applications
- Multiple reel lengths available
- Custom specifications and export packaging available
Typical Applications
1×19 stainless steel wire rope is suitable for applications requiring a stable, relatively rigid cable with limited repeated bending.
- Architectural cable systems
- Tension and support cables
- Structural cable applications
- Balustrade and railing cable systems
- Industrial cable assemblies
- Guy and support wire applications
- General stainless steel cable projects
For applications requiring greater flexibility or repeated bending, 7×7 stainless steel wire rope or 7×19 stainless steel wire rope may be more suitable.
1×19 vs 1×7 vs 7×7 vs 7×19 Stainless Steel Wire Rope
1×19 Stainless Steel Wire Rope
1×19 uses nineteen individual wires in one strand. It provides a compact and stable structure with relatively low flexibility and is suitable for tension and structural cable applications.
1×7 Stainless Steel Wire Rope
1×7 stainless steel wire rope uses seven wires in one strand and provides a simple, relatively rigid cable construction.
7×7 Stainless Steel Wire Rope
7×7 stainless steel wire rope provides medium flexibility and balanced performance for architectural, safety and general-purpose cable applications.
7×19 Stainless Steel Wire Rope
7×19 stainless steel wire rope provides significantly greater flexibility and is more suitable for applications involving repeated bending, movement or pulley systems.
Custom Stainless Steel Wire Rope Supply
Guangtong Metal supplies stainless steel wire rope in multiple constructions, diameters and reel lengths.
Available constructions include 1×7, 1×19, 7×7, 7×19 and other wire rope configurations for different industrial, architectural and OEM applications.
Custom diameters, reel lengths, packaging and production specifications are available according to customer drawings, samples, application requirements and order quantities.
If you are unsure which construction is suitable for your application, send us the required diameter, length, quantity, working condition and application for technical review before quotation.
Request a Quote
Send us your required diameter, material grade, reel length, quantity and application.
Guangtong Metal can provide technical confirmation, quotation, OEM production and export packaging for 1×19 stainless steel wire rope.
FAQ
What is 1×19 stainless steel wire rope?
1×19 stainless steel wire rope consists of nineteen individual wires formed into one strand. It provides a compact and relatively rigid cable structure with good dimensional stability.
What diameters are available for 1×19 stainless steel wire rope?
The reference specification range shown for this 1×19 construction is 0.40 mm to 12.00 mm.
Is 1×19 stainless steel wire rope flexible?
1×19 has relatively low flexibility compared with 7×7 and 7×19 constructions. It is generally used where stable tension and structural consistency are more important than repeated bending.
What is the difference between 1×19 and 7×19 wire rope?
1×19 is a single-strand construction and is relatively rigid. 7×19 is a multi-strand construction with much greater flexibility, making it more suitable for movement, repeated bending and pulley applications.
What is the difference between 1×7 and 1×19 wire rope?
Both are single-strand constructions, but 1×7 contains seven wires, while 1×19 contains nineteen wires. The two constructions provide different cable profiles and performance characteristics for different applications.
Can you supply custom reel lengths?
Yes. Reel length, packaging and other production specifications can be customized according to diameter, quantity and application requirements.
