Wire Rope Clips Overview

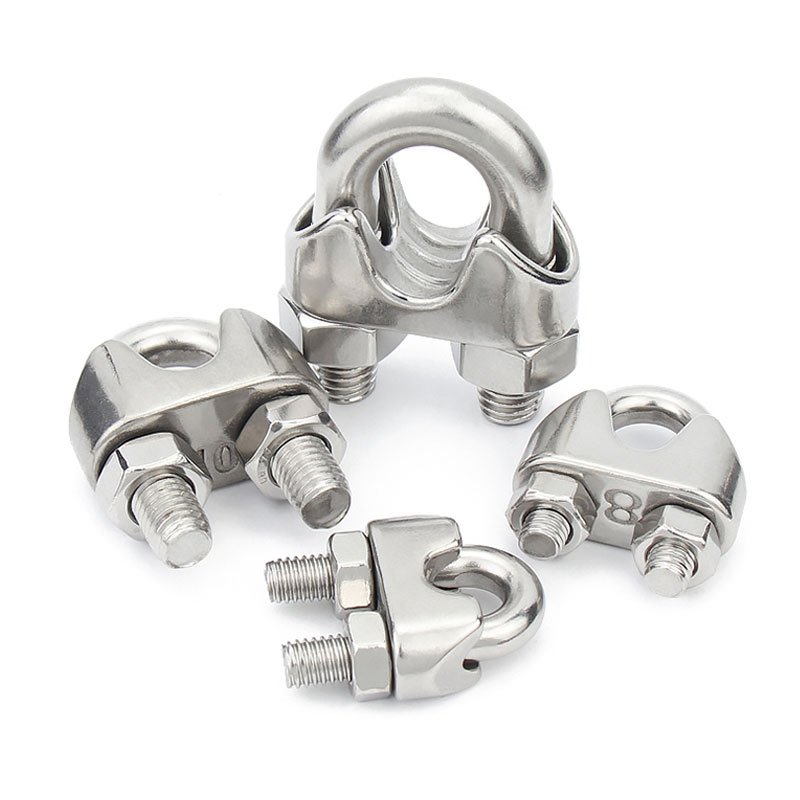

Our wire rope clips are designed for securing wire rope ends, forming loops and connecting cable assemblies. The DIN 741 type features a U-bolt, saddle and two nuts for simple installation and reliable clamping.
Available in sizes from 2 mm to 30 mm, these wire rope clips can be used with different wire rope diameters and are suitable for general industrial, construction, fencing, rigging and cable system applications.
Different materials, surface finishes and packaging options can be supplied according to customer requirements.
Key Features
DIN 741 Type
Standard DIN 741 style wire rope clips are available in a wide range of sizes for different wire rope diameters.
Wide Size Range
Available sizes include:
2 mm, 3 mm, 4 mm, 5 mm, 6 mm, 8 mm, 10 mm, 12 mm, 14 mm, 16 mm, 18 mm, 20 mm, 22 mm, 24 mm, 26 mm and 30 mm.
Simple Installation
The U-bolt and saddle design allows the wire rope to be secured using standard nuts and installation tools.
Multiple Material Options
Galvanized steel and stainless steel options can be supplied according to corrosion resistance, environment and application requirements.
Custom Packaging
Wire rope clips can be supplied in bags, cartons, pallets or customized packaging for distributors, wholesalers and project orders.
Applications
Our wire rope clips are widely used in:
Wire rope loop termination
Cable assemblies
Fencing systems
Construction projects
General rigging
Safety cable systems
Agricultural applications
Industrial machinery
Hanging and suspension systems
General engineering applications
DIN 741 Size Range
| Size | A (mm) | B (mm) | D (mm) | H1 (mm) | H2 (mm) | H3 (mm) | Package (pcs/bag) |
|---|---|---|---|---|---|---|---|
| 2 mm | 4.37 | 9.89 | 3.0 | 17.50 | 9.15 | 4.26 | 100 |
| 3 mm | 5.53 | 9.56 | 4.0 | 20.00 | 9.67 | 5.46 | 100 |
| 4 mm | 6.49 | 11.65 | 4.0 | 21.60 | 9.85 | 4.01 | 100 |
| 5 mm | 7.25 | 16.12 | 5.0 | 27.50 | 10.41 | 3.98 | 100 |
| 6 mm | 7.12 | 17.62 | 6.0 | 32.50 | 11.82 | 5.95 | 100 |
| 8 mm | 9.54 | 20.02 | 6.0 | 34.00 | 15.44 | 5.83 | 100 |
| 10 mm | 11.24 | 22.71 | 8.0 | 44.10 | 16.57 | 5.95 | 100 |
| 12 mm | 15.88 | 29.35 | 10.0 | 51.00 | 17.99 | 6.61 | 50 |
| 14 mm | 15.66 | 29.35 | 10.0 | 56.00 | 21.82 | 8.34 | 50 |
| 16 mm | 18.01 | 29.55 | 12.0 | 65.00 | 24.69 | 8.43 | 20 |
| 18 mm | 20.07 | 29.85 | 12.0 | 80.00 | 29.72 | 9.65 | 20 |
| 20 mm | 22.94 | 32.44 | 12.0 | 73.00 | 30.82 | 10.51 | 20 |
| 22 mm | 24.12 | 32.56 | 12.0 | 87.30 | 32.44 | 11.87 | 10 |
| 24 mm | 26.13 | 33.41 | 12.0 | 76.00 | 33.76 | 12.87 | 10 |
| 26 mm | 27.36 | 54.12 | 14.0 | 108.00 | 37.29 | 16.44 | 10 |
| 30 mm | 33.19 | 56.92 | 16.0 | 110.00 | 43.19 | 13.44 | 10 |
Dimensions may vary slightly depending on production batch and material. Please confirm specifications before ordering.
Installation
Correct installation is important for maintaining a secure wire rope termination.
The U-bolt should be positioned over the rope tail, while the saddle should be placed on the load-bearing side of the wire rope. Nuts should be tightened evenly and checked again after the rope has been loaded.
The number and spacing of wire rope clips should be selected according to wire rope diameter, application and project requirements.
Quality Control
Inspection is carried out during production and before shipment. Depending on order requirements, inspection may include:
Product dimensions
Thread inspection
Surface finish
Material verification
Nut and U-bolt fit
Quantity inspection
Packaging inspection
OEM & Custom Supply
We support wholesalers, distributors, wire rope assemblers and project customers with bulk supply and customized packaging.
Customization options include:
Material
Surface finish
Size
Packaging quantity
Labeling
Carton marking
Export packaging
Related Products
You may also be interested in our Stainless Steel Wire Rope, Galvanized Steel Wire Rope, Coated Wire Rope and other Wire Rope Accessories.
FAQ
What sizes of wire rope clips are available?
DIN 741 wire rope clips are available from 2 mm to 30 mm for different wire rope diameters.
What is the difference between a wire rope clip and a wire rope clamp?
Both terms are commonly used for fittings designed to secure wire rope ends. The DIN 741 U-bolt type is one of the most common wire rope clip designs.
Do you supply galvanized wire rope clips?
Yes. Galvanized wire rope clips are available for general industrial and outdoor applications.
Are stainless steel wire rope clips available?
Stainless steel options can be supplied according to corrosion resistance and application requirements.
Can you supply customized packaging?
Yes. Bag quantity, carton packaging, labels and export packaging can be customized according to order requirements.
Can I request samples?
Yes. Samples can be arranged after confirming the required size, material and availability.
What information should I provide for a quotation?
Please provide the clip type, size, material, surface finish, quantity, packaging requirements and destination country.
